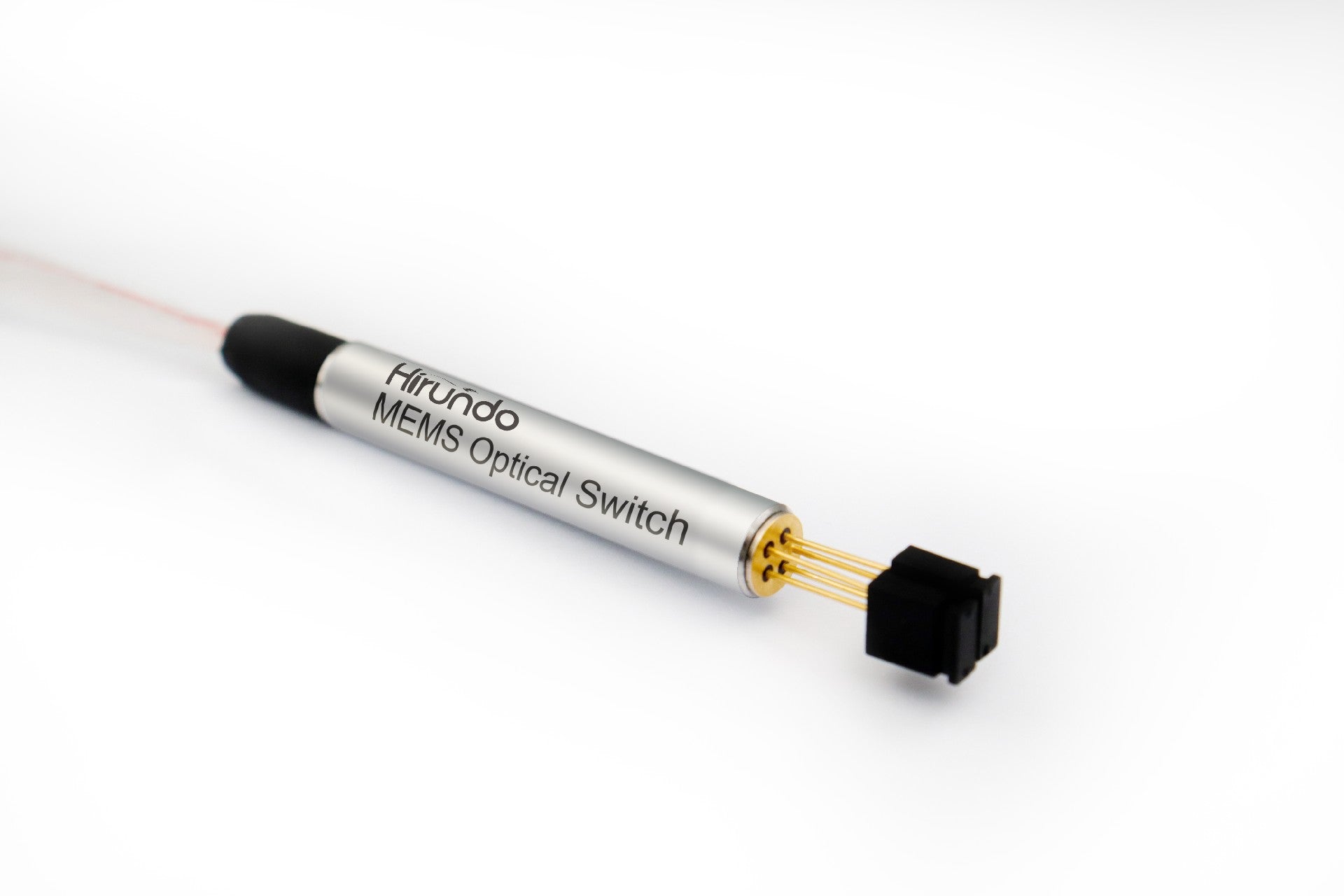

1XN MEMS Optical Switch Device
Overview
The 1×N MEMS Optical Switch is a high-performance solution for dynamic fiber-optic network management. Utilizing Micro-Electro-Mechanical Systems (MEMS) technology, this switch provides fast, precise, and reliable light routing between a single input and multiple outputs. With its compact design, low power consumption, and robust performance, it is ideal for a wide range of applications in telecommunications, data centers, and research facilities.
"For detailed technical specifications, please reach out to us directly."
Choose options
Got Questions? Consult With Us Below
Product Highlights
There is a drive board in Hirundo's 1xN MEMS switch module This Driver Board provides the necessary drive circuitry for the 2D MEMS Chip, allowing the user to control four analog voltages between 0 and 60V that actuate the MEMS mirror. The required power supply for the driver PCB is 5V/12V and its internal HV boost circuit provides the 60V power supply to the HV DAC (AD 5504). The 26-pin connector on its back side is designed for connecting to the Raspberry Pi but it will work with any SPI hardware.

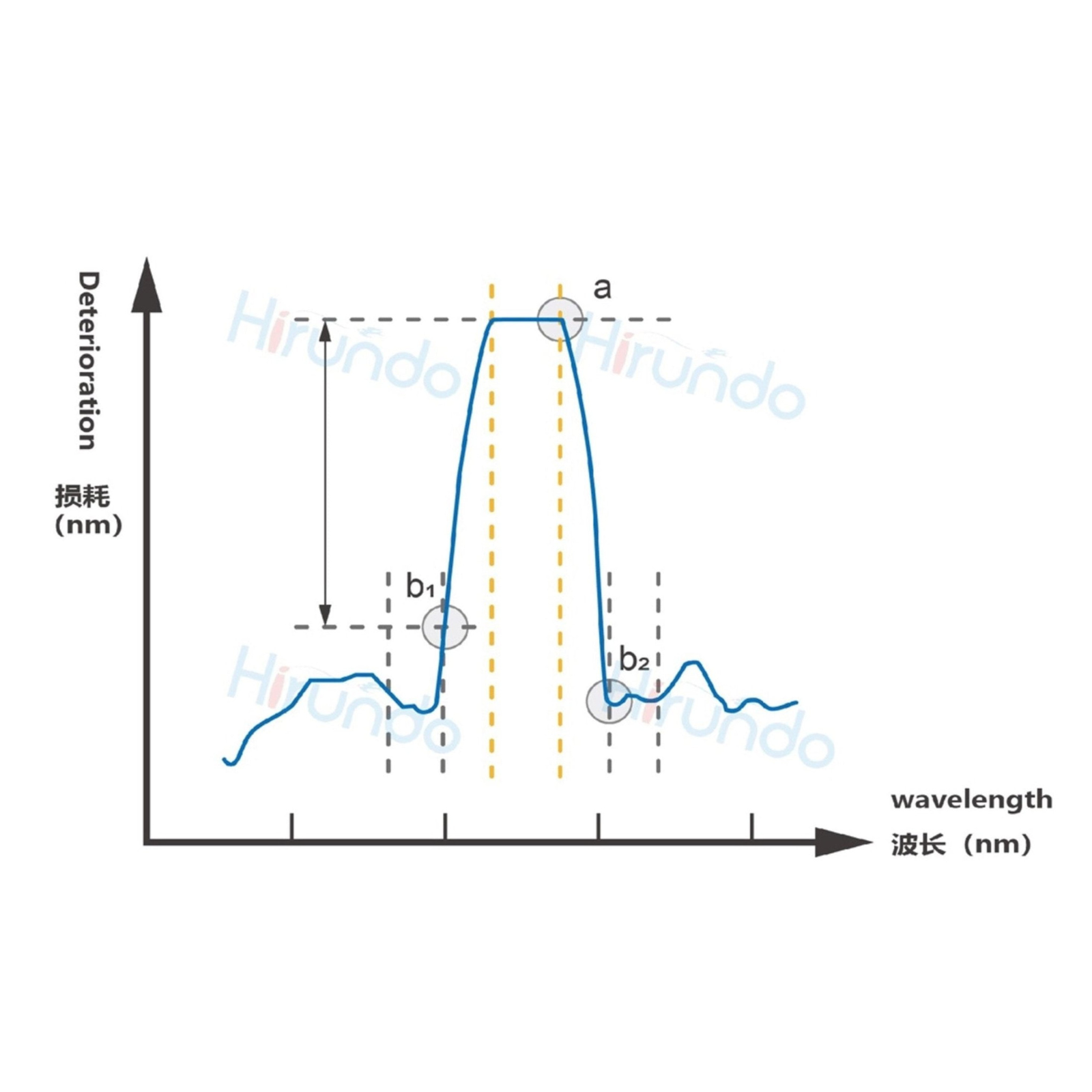

Low insertion loss

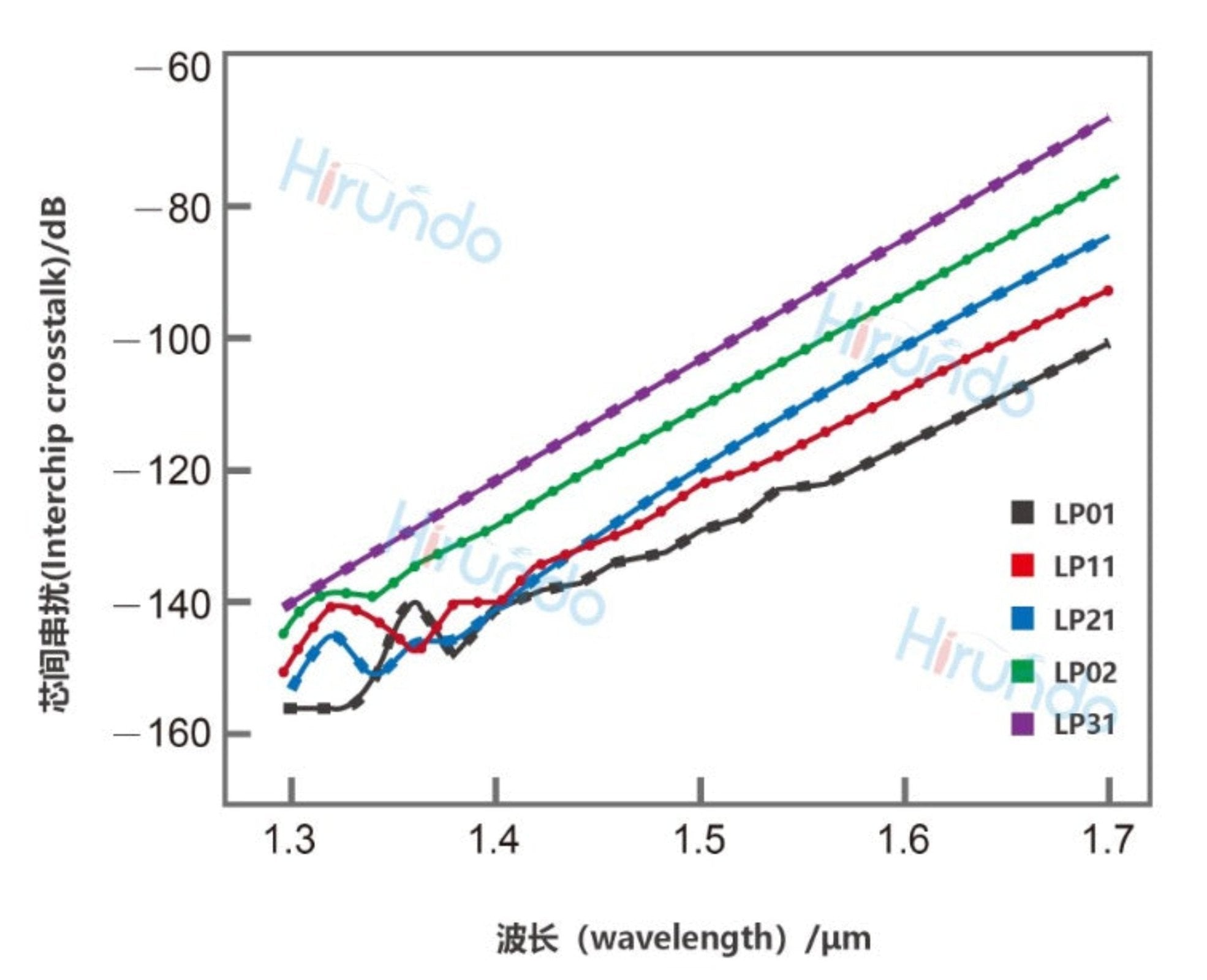

Low crosstalk

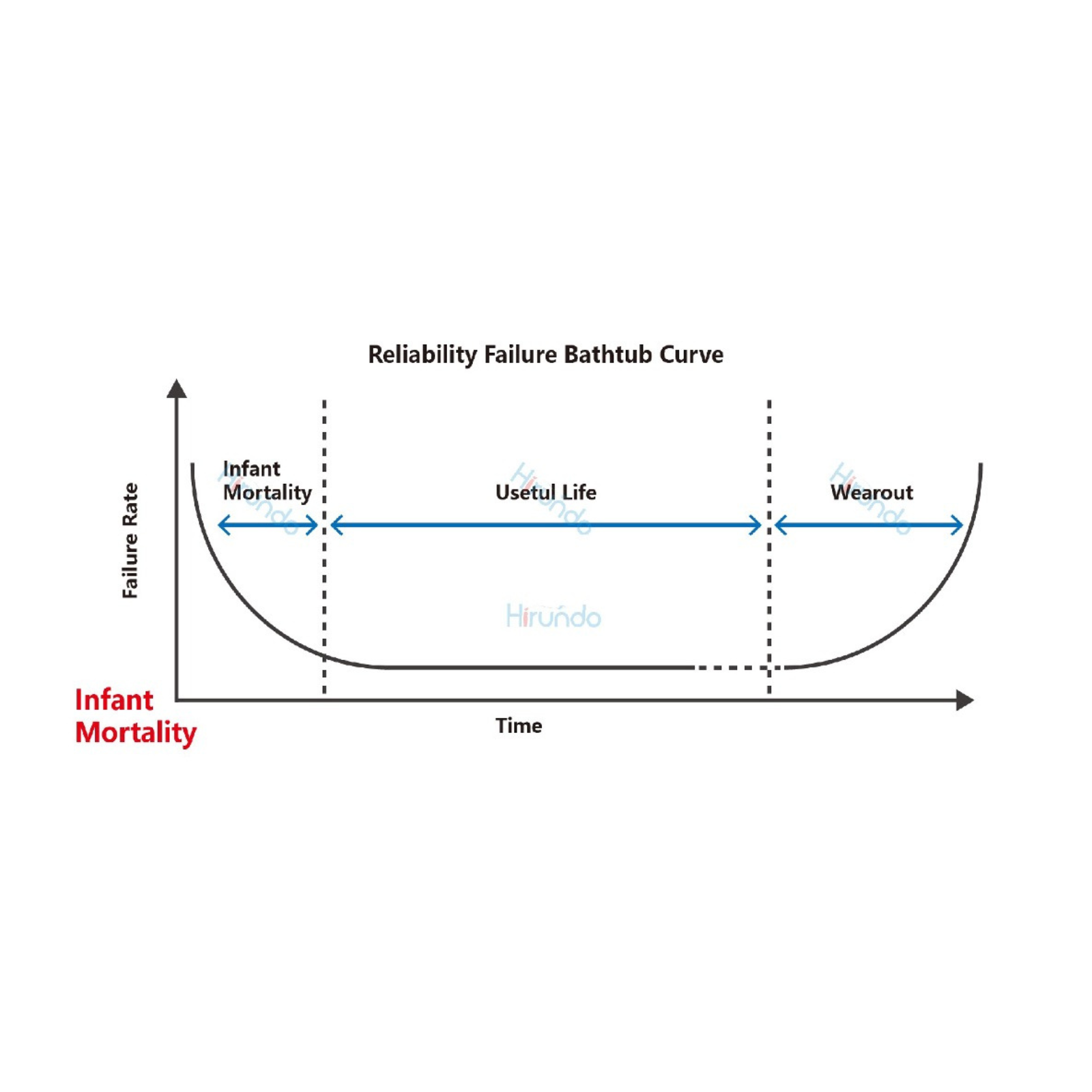

High Repeatability & Longevity
Application Demonstration
OXC

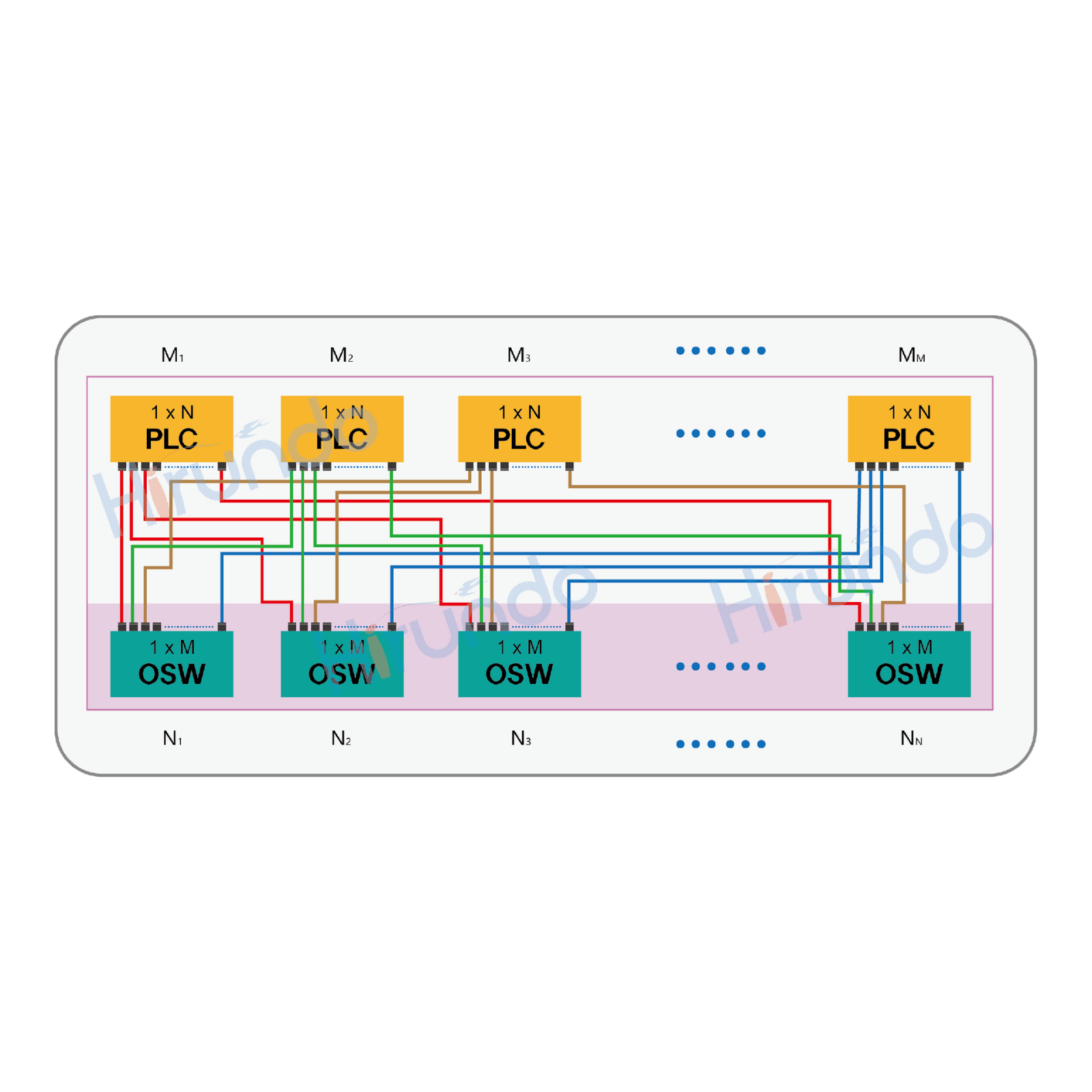

WSS
WSS
