2x2B Mechanical Optical Switch
Overview
The 2×2B Mechanical Optical Switch from Hirundo Optics Inc. is an advanced optical device designed for precise bidirectional light routing between two input and two output ports. Known for its low insertion loss, high reliability, and robust construction, this switch is ideal for dynamic optical path configurations, redundancy, and signal protection in modern fiber-optic networks.
"For detailed technical specifications, please reach out to us directly."
Choose options
Got Questions? Consult With Us Below
Product Highlights
Hirundo's 2x2 fiber optic switch connects optical channels by directing or blocking an incoming optical signal into the output fiber. This is achieved using a patent pen- ding opto-mechanical configuration and activated via an electrical control signal. A latching version preserves the selected optical path after the drive signal has been removed, while the non-latching versions default to either the open or closed state when power is removed. The switch has integrated electrical position sensors. The new material based advanced design significantly reduces moving part position sensitivity, offering unprecedented high stability as well as unmatched low cost.
Low insertion loss
Low crosstalk
High repeatability & longlife

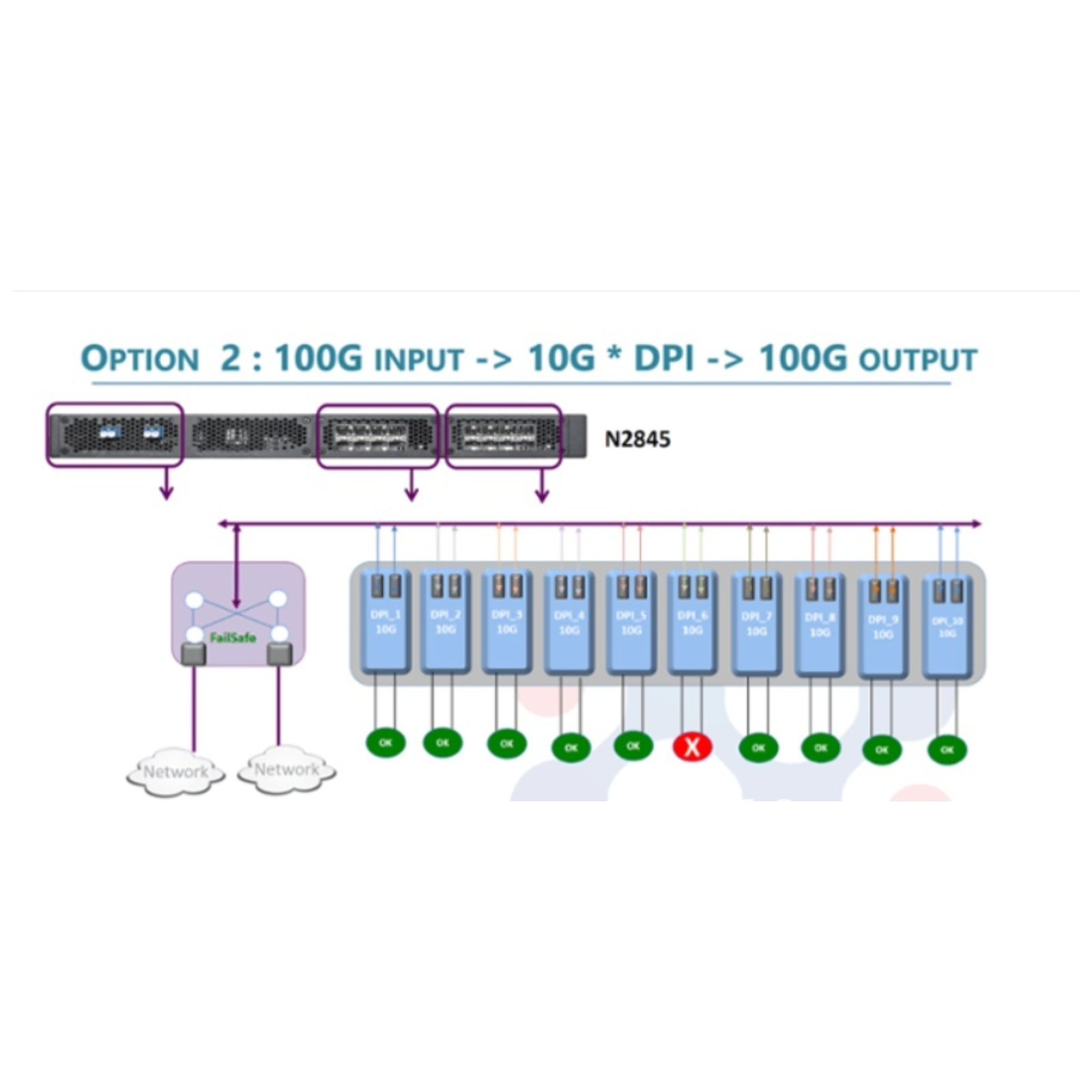

Application Demonstration
For DPI & For Bypass Switch
