Circulator
Overview
Hirundo offers high-performance Fiber Circulators designed for a range of optical network applications. These circulators are available in 3-port and 4-port configurations, providing reliable and efficient signal routing in fiber optic systems. They are ideal for use in systems requiring unidirectional light propagation, such as optical testing, fiber communication, and sensor applications.
"For detailed technical specifications, please reach out to us directly."
Choose options
Got Questions? Consult With Us Below
Product Highlights

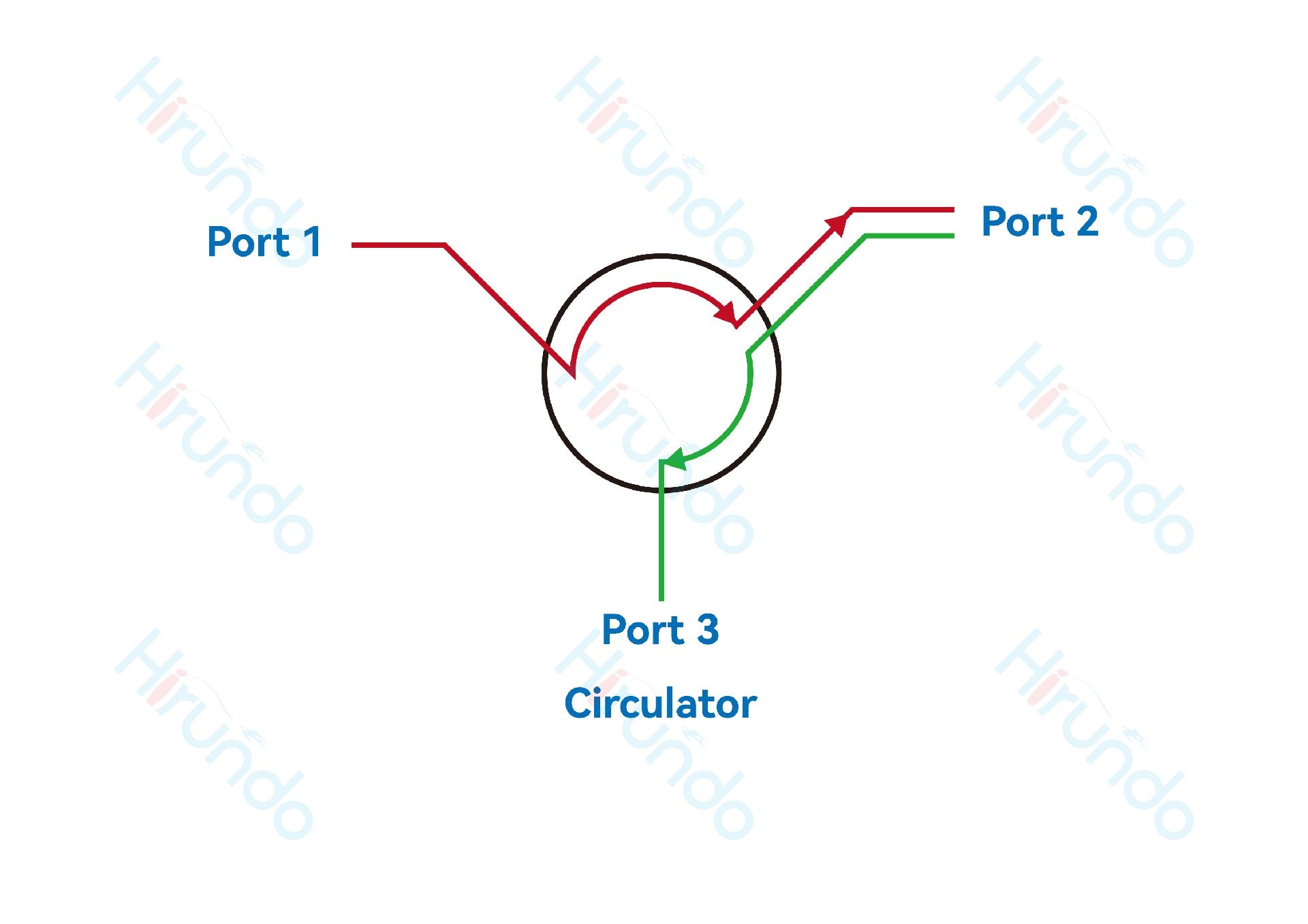

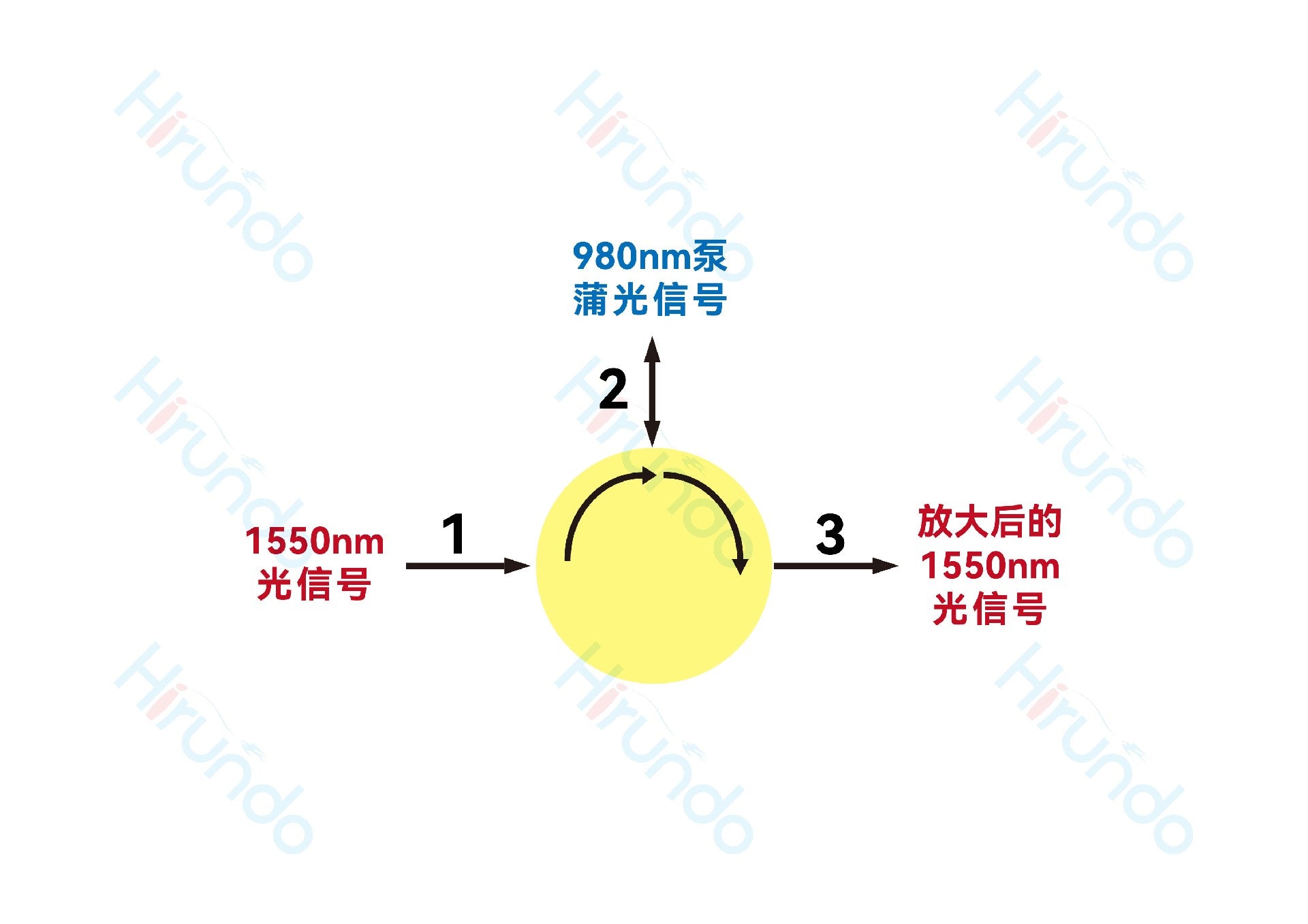

Hirundo's optical fiber torus is a multi-port non-reciprocal optical device in which light can only travel in one direction.If the signal is input through port 1, it is output through port 2. If the signal is input from port 2, it will be output from port 3. The output loss is very small. When the optical input is from port 2, the optical output from port 1 will lose a lot. Similarly, when the optical input is from port 3, the optical output from port 1 and 2 will lose a lot.Fiber ring is widely used in fiber laser, diff multiplexer, bidirectional pumping system, dispersion compensation device, fiber sensing, scientific research and other fields. Hirundo's optical fiber torus is available at 1310 nm and 1550nm, and has undergone rigorous quality inspection.
Dispersion compensation
Signal multiplication

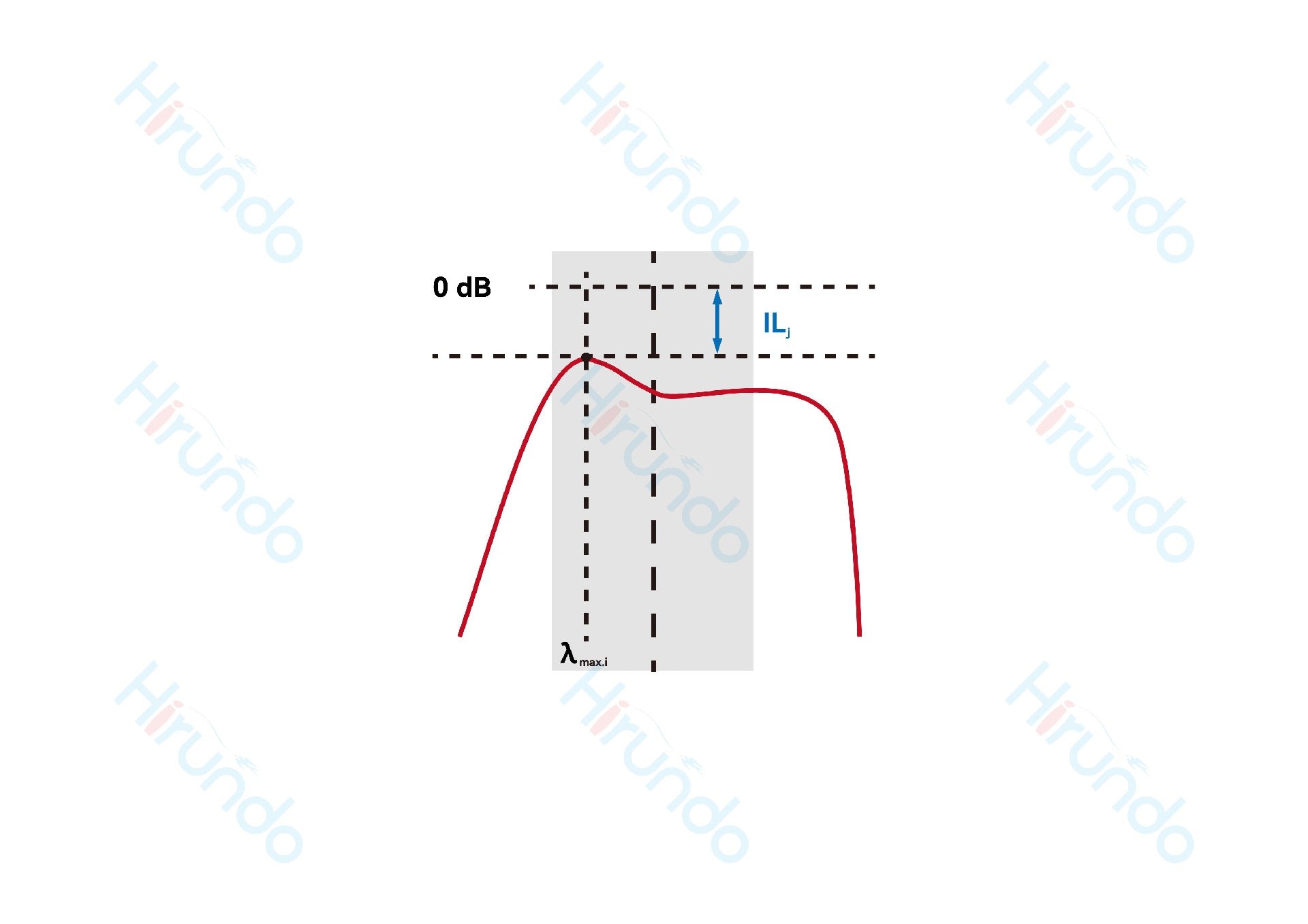

Low insertion losse
Application Demonstration

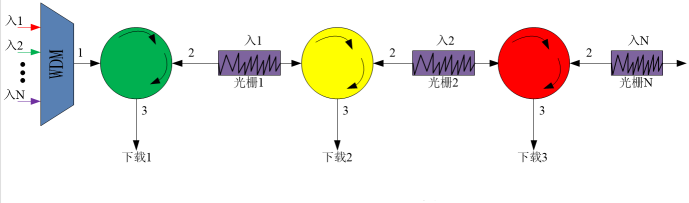

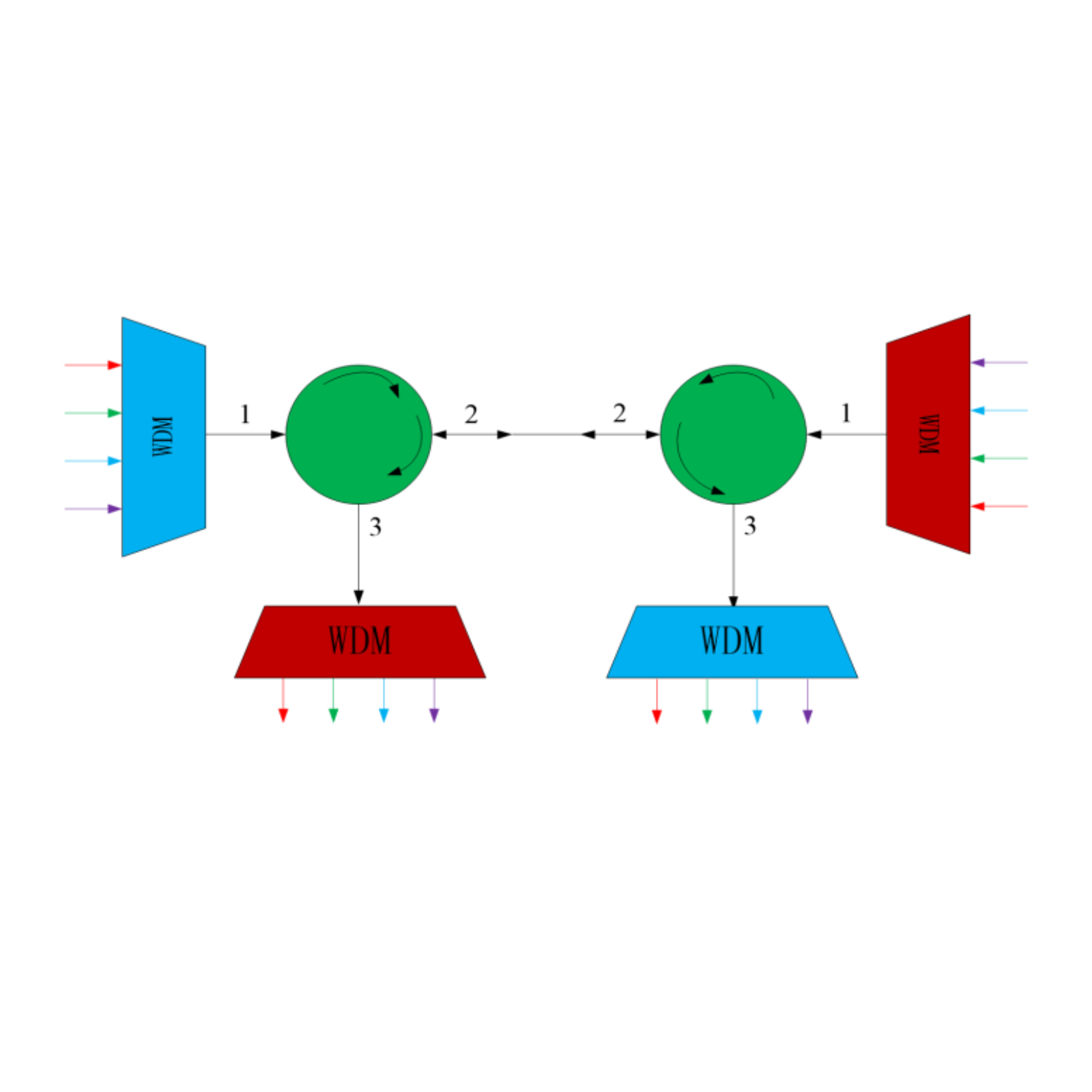

For WDM Transmission System And For Fiber Bragg Grating & WDM Transmission System
