MXN MEMS Optical Switch
Overview

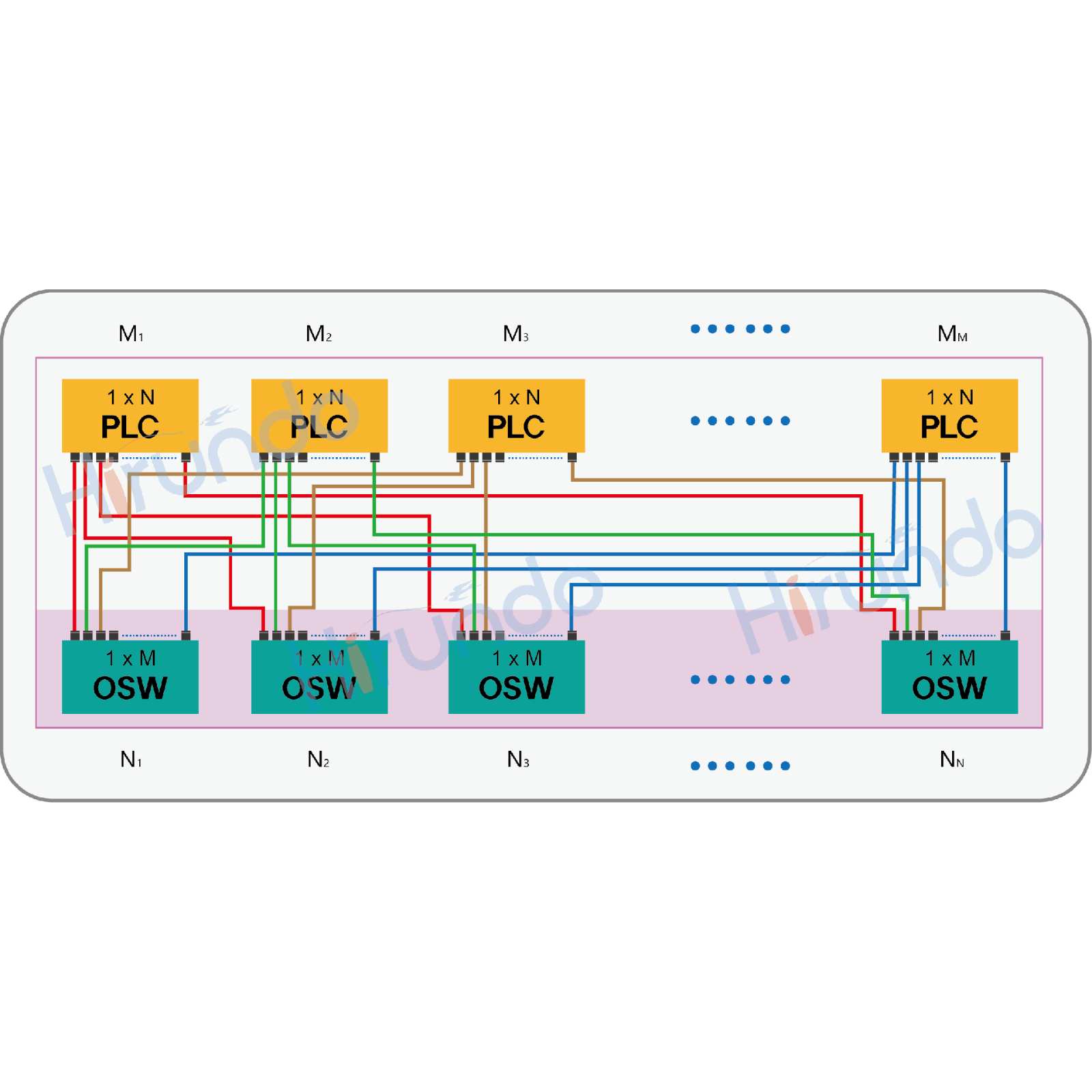

The M×N MEMS Optical Switch is an advanced switching device designed to provide seamless routing between multiple input and output ports in optical networks. Leveraging cutting-edge Micro-Electro-Mechanical Systems (MEMS) technology, it ensures high-speed, precise, and reliable optical signal management. Its compact design and robust performance make it an ideal solution for dynamic optical communication networks, data centers, and R&D applications.
"For detailed technical specifications, please reach out to us directly."
Choose options
Got Questions? Consult With Us Below
Product Highlights

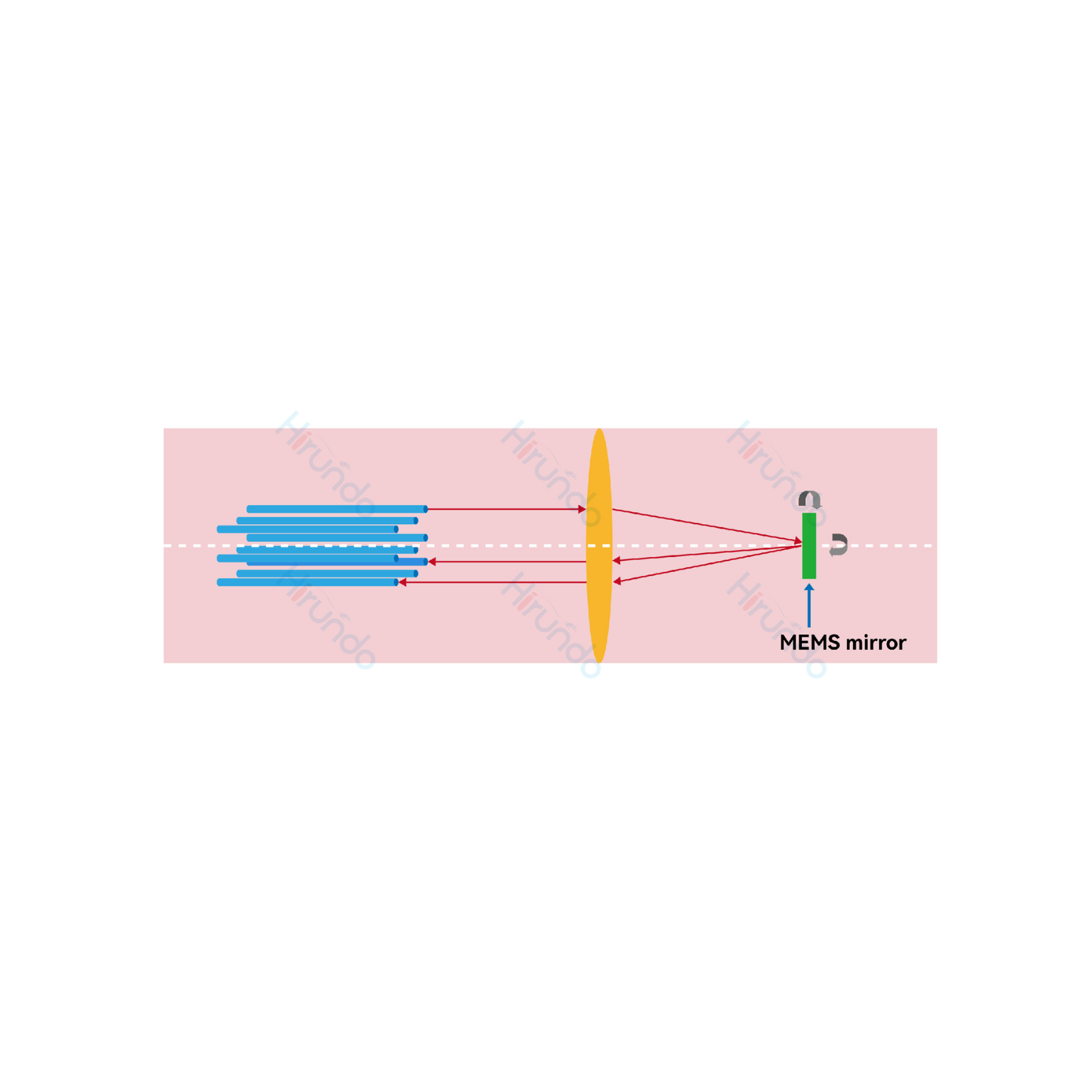

There is a drive board in Hirundo's 1xN MEMS switch module This Driver Board provides the necessary drive circuitry for the 2D MEMS Chip, allowing the user to control four analog voltages between 0 and 60V that actuate the MEMS mirror. The required power supply for the driver PCB is 5V/12V and its internal HV boost circuit provides the 60V power supply to the HV DAC (AD 5504). The 26-pin connector on its back side is designed for connecting to the Raspberry Pi but it will work with any SPI hardware.
Fast Switching Time

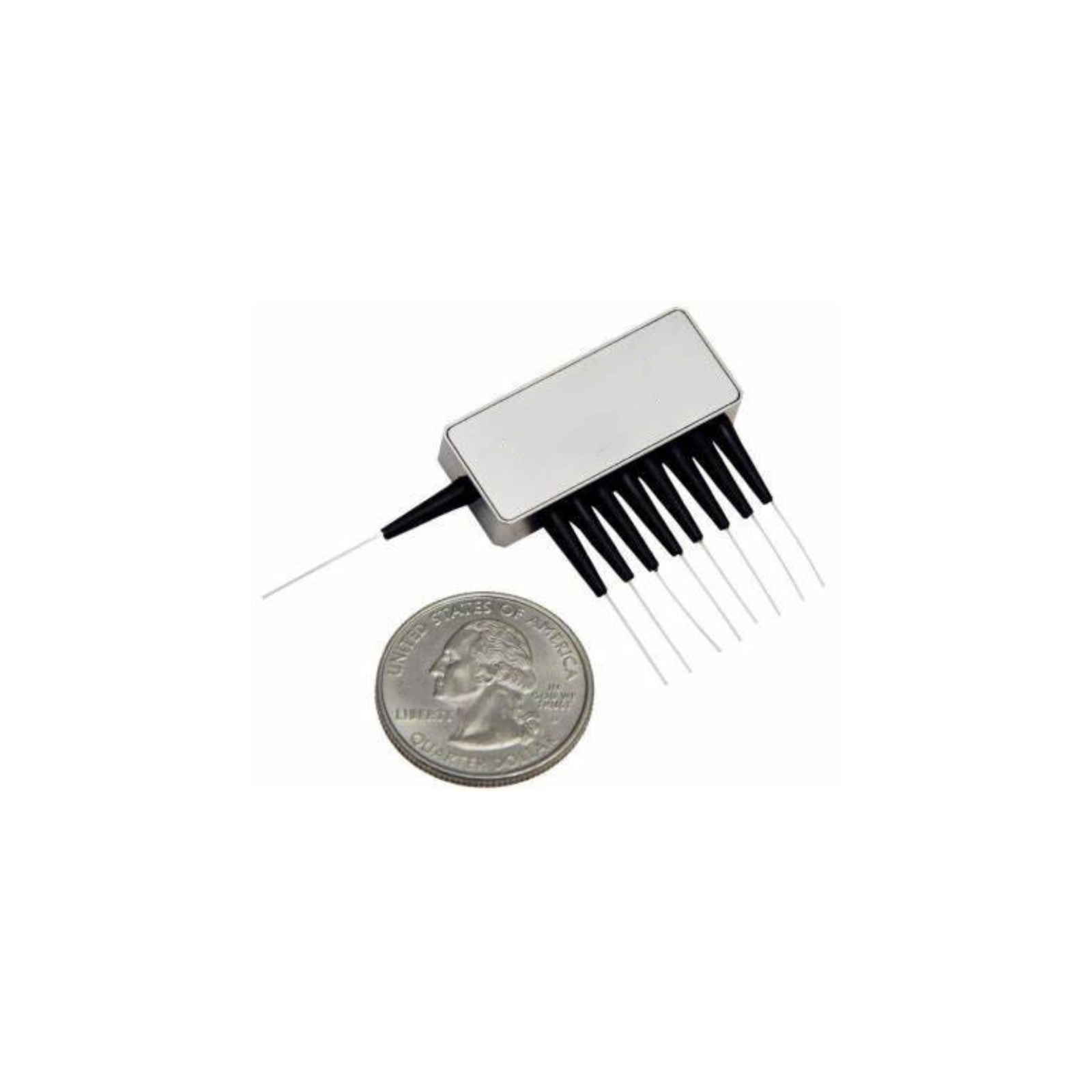

Small Size, High Integration Degree

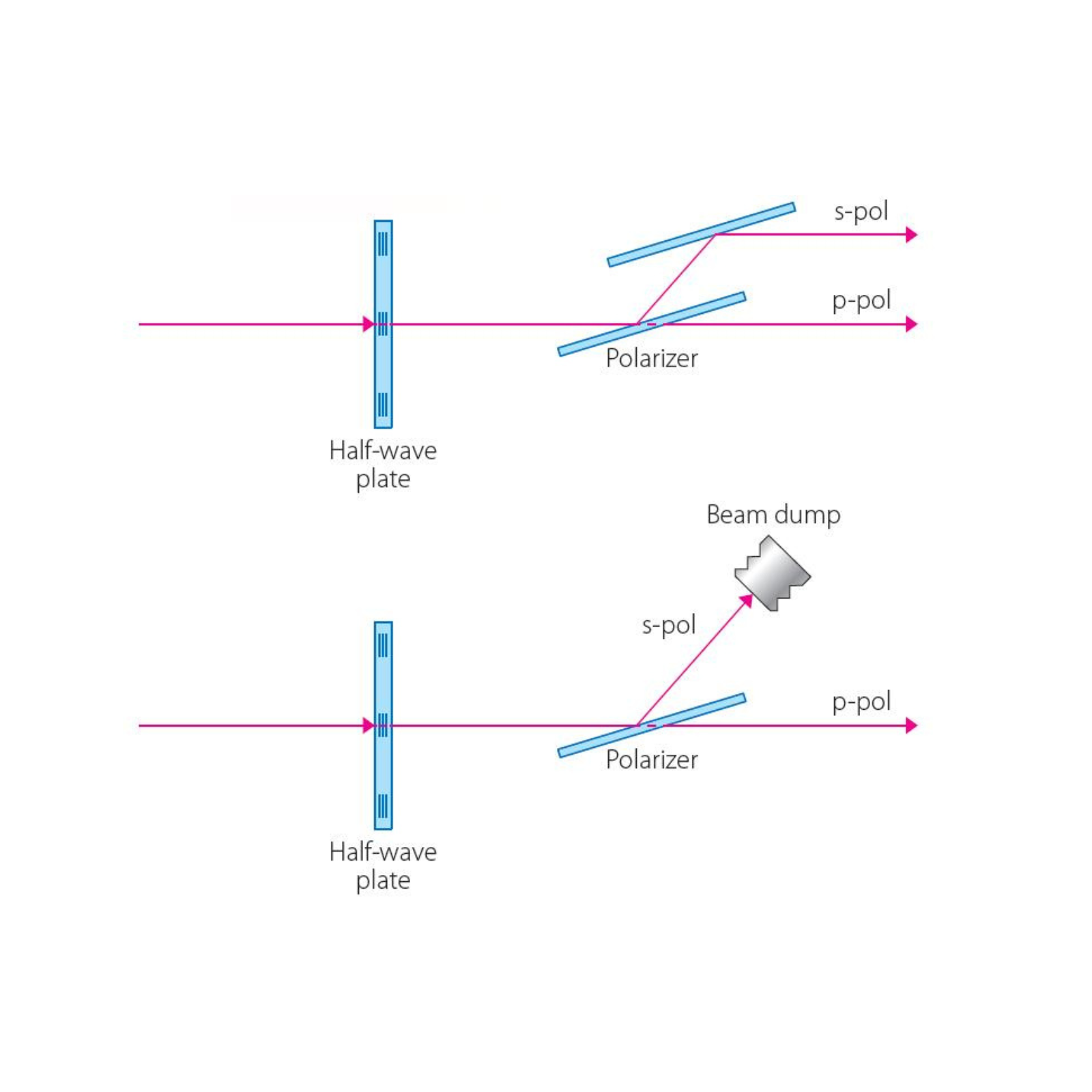

Low Polarization Sensitivity
Application Demonstration

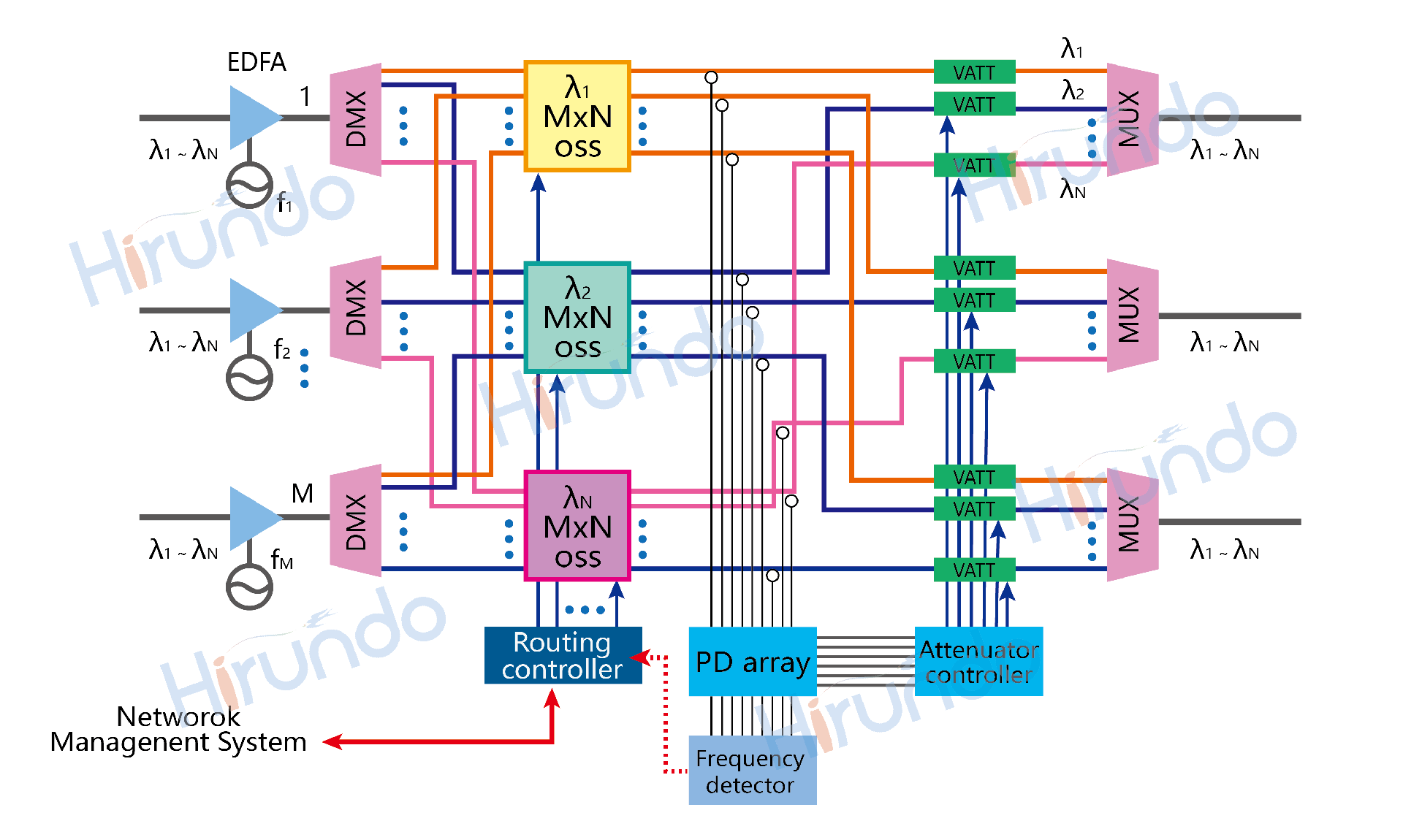

For OXC And For WSS
